Electronic Weighing Scales

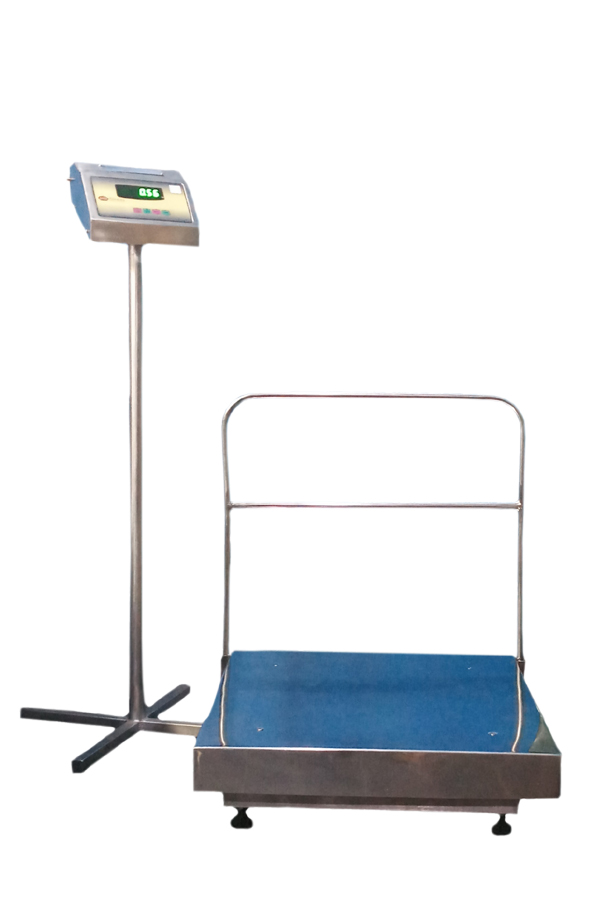

Milk Dairy Weighing Scale
Available All types of models as per Customer Requirement
Model No : DAIRYSS304
Functional Requirement : To Electronically weigh & digital display of milk quantity in litre in a container
Platform size : 600 mm X 600 mm ( 2 or 3Nos of 40kg milk Cans )
Capacity : 200kg / 20gram with litre Option
Platform Make : AISI SS 304grade Steel, 1.5 mm thick, 150 grit top plate.
Platform under Frame material/Design : SS steel box of adequate size.
Load Cell : Single, IP 67, grade SS of certified and approved make.
Indicator : MS Indicator Quantity -7 Segment RED LED, 6 digits green front & Back display
mode of operation- zero, tare, kg/litre, by default KG.
Connectivity to PC : RS 232 serial port
Stand / Pole : Pole mounted type with sturdy base and SS 304, 38 mm dia, Pipe-1.2 m high.
Calibration : Password protected.
Battery : 6Volts, 4.5AH
Certification & Stamping : Duty certified and stamped by Weight & Measurment Department.
Make : Canon Services
Model No – DairySS202
Functional Requirement : To Electronically weigh & digital display of milk quantity in litre in a container
Platform size : 600 mm X 600 mm ( 2 or 3Nos of 40kg milk Cans )
Capacity : 200kg / 20gram with litre Option
Platform Make : Stain Less 202grade Steel, 1.5 mm thick.
Platform under Frame material/Design : SS steel box of adequate size.
Load Cell : Tool Steel, grade SS of certified and approved make.
Indicator : MS Indicator Quantity -7 Segment RED LED, 6 digits green front & Back display
mode of operation- zero, tare, kg/litre, by default KG.
Connectivity to PC : RS 232 serial port
Stand / Pole : Pole mounted type with sturdy base and SS 202, 38 mm dia, Pipe-1.2 m high.
Calibration : Password protected.
Battery : 6Volts, 4.5AH
Certification & Stamping : Duty certified and stamped by Weight & Measurment Department.
Make : Canon Services.
Model No – DAIRYMS1
Functional Requirement : To Electronically weigh & digital display of milk quantity in litre in a container.
Platform size : 600 mm X 600 mm ( 2 or 3Nos of 40kg milk Cans )
Capacity : 200kg / 20gram with litre Option
Platform Make : Stain Less steel, 1.5 mm thick.
Platform under Frame material/Design : MS box of adequate size.
Load Cell : 500kg capacity Tool Steel, 25:35mm dia.
Indicator : MS Indicator Quantity -7 Segment RED LED, 6 digits green front & Back display
mode of operation- zero, tare, kg/litre, by default KG.
Connectivity to PC : RS 232 serial port
Stand / Pole : Pole mounted type with sturdy base and MS, 38 mm dia, Pipe-1meter high.
Calibration : Password protected.
Battery : 6Volts, 4.5AH
Certification & Stamping : Duty certified and stamped by Weight & Measurment Department.
Make : Canon Services.
Model No – DAIRYMS2
Functional Requirement : To Electronically weigh & digital display of milk quantity in litre in a container.
Platform size : 450 mm X 550 mm ( 1No of 40kg milk Cans )
Capacity : 200kg / 20gram with litre Option
Platform Make : Stain Less, 1.5mm thick.
Platform under Frame material/Design : MS box of adequate size.
Load Cell : 300kg capacity Aluminium, 25:25mm dia.
Indicator : MS Indicator Quantity -7 Segment RED LED, 6 digits green front & Back display mode of operation- zero, tare, kg / litre, by default KG.
mode of operation- zero, tare, kg/litre, by default KG.
Connectivity to PC : RS 232 serial port
Stand / Pole : Pole mounted type with sturdy base and MS, 38 mm dia, Pipe-1meter high.
Calibration : Password protected.
Battery : 6Volts, 4.5AH
Certification & Stamping : Duty certified and stamped by Weight & Measurment Department.
Make : Canon Services.

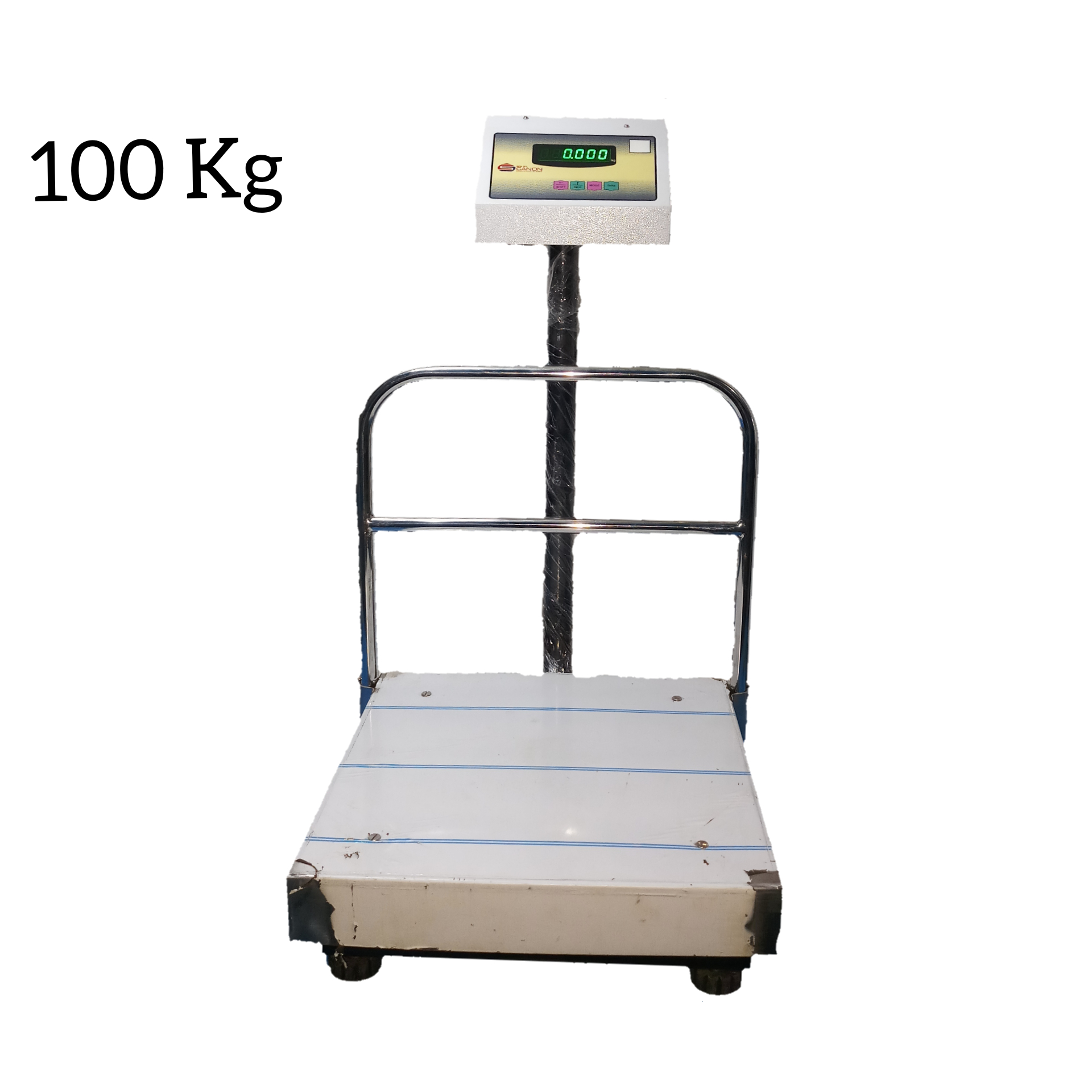

Model No – DAIRYMS3
Functional Requirement : To Electronically weigh & digital display of milk quantity in litre in a container.
Platform size : 400 mm X 400 mm ( 1No of 40kg milk Cans )
Capacity : 100kg / 10gram with litre Option
Platform Make : Stain Less, 1.5mm thick.
Platform under Frame material/Design : MS box of adequate size.
Load Cell : 300kg capacity Aluminium, 25:25mm dia.
Indicator : MS Indicator Quantity -7 Segment RED LED, 6 digits green front & Back display
mode of operation- zero, tare, kg/litre, by default KG.
Connectivity to PC : RS 232 serial port
Stand / Pole : Pole mounted type with sturdy base and MS, 38 mm dia, Pipe-0.6meter high.
Calibration : Password protected.
Battery : 6Volts, 4.5AH
Certification & Stamping : Duty certified and stamped by Weight & Measurment Department.
Make : Canon Services.
